A70X6
Air-Cooled AI Server Powered by RTX PRO 6000.
Redefine performance and capability for AI and Graphics.
Powerful
- Intel® Xeon® 6th Gen Processors
- 32 DIMM slots, RDIMM support up to 6400 MT/s
- NVIDIA HGX B300 air-cooled support
Scalable
- 8 × 800 G OSFP integration with HGX B300
- Compatible with full- and half-height NIC cards
Optimized
- Front I/O access for easy maintenance
- N+N redundant PSU for reliability
- High-efficiency thermal and DC/DC power solutions
Overview

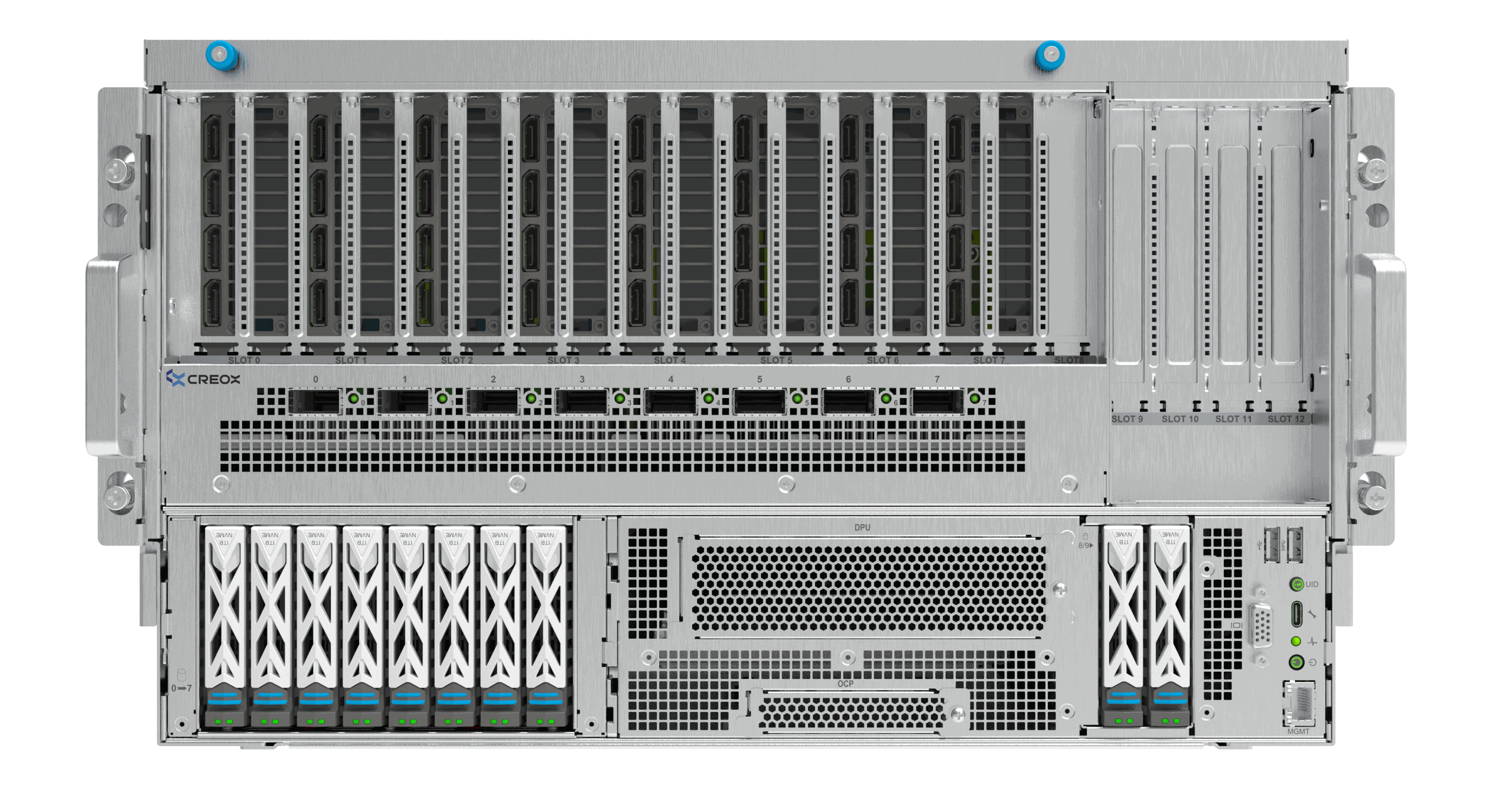

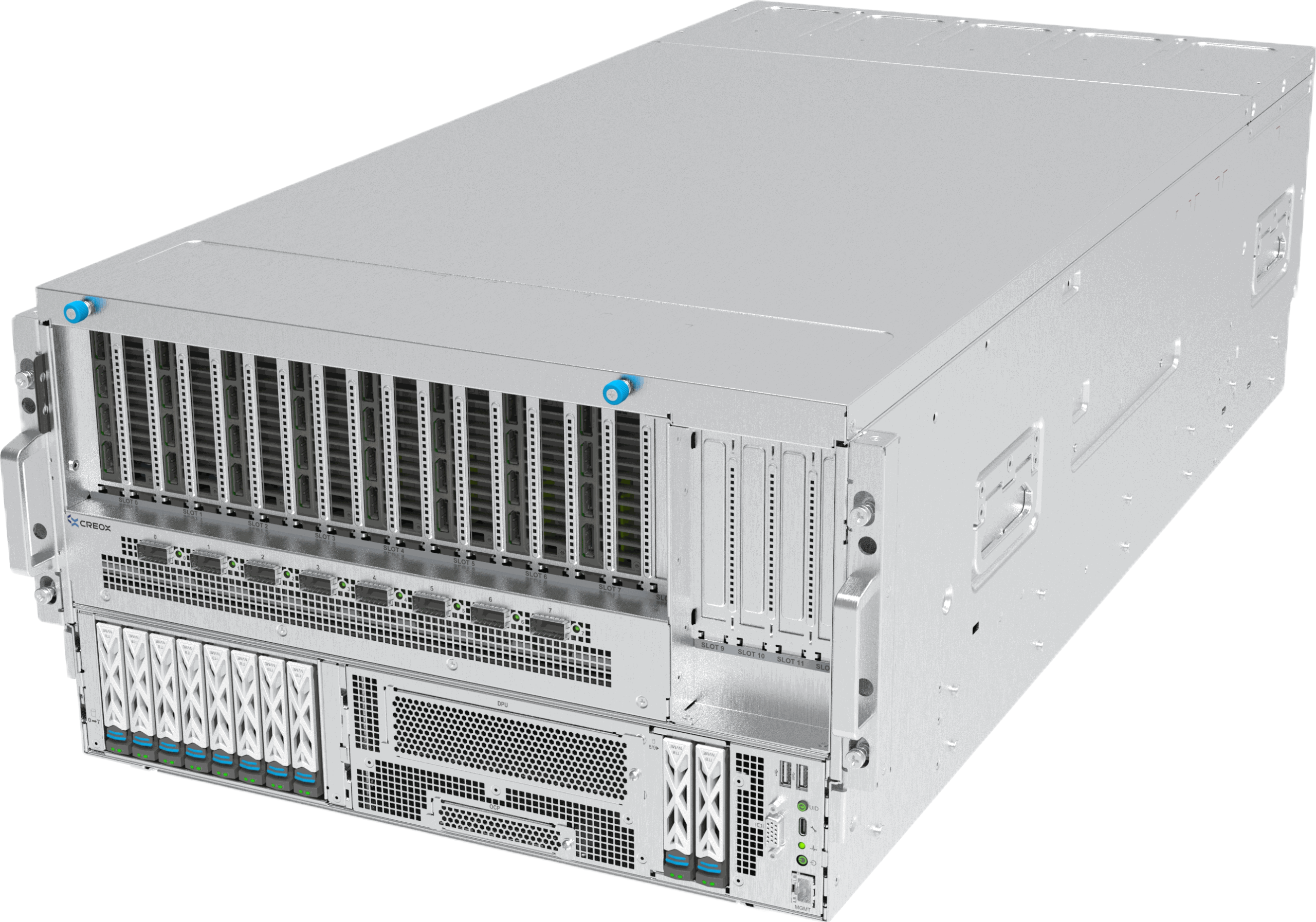

A70X6 is a 6U 8 PCIe GPU card AI server,
based on the Intel® platform – Birch Stream, support
6th generation Intel® Xeon® Scalable Processor –
Granite Rapids. Could fully support the AI business on
both cloud datacenter and enterprise IT.
Application
AI cloud computing, LLM Training, Inference, HPC
Technical Specifications
| CPU | 2* Intel® Xeon® 6700E/6500P/6700P Processor up to 350W |
| GPU | 8* FHFL Dual Slot for PCIe GPU |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 8* SFF NVMe slot (from switch) 2* SFF SATA/NVMe slot (from CPU, SATA need Add-in RAID card) Internal: 2* 2280 M.2 slot |
| PCIe Extension | Front PCIe Slot for GPU: 8* X16 FHFL Dual Slot (from switch) Front PCIe Slot for E-W NIC: 4* X16 FHHL Single Slot (from switch) Front PCIe Slot for N-S NIC: 1* X16 FHHL Single Slot (from CPU) Onboard 8* QSFP 400G for E-W NIC (CX8 SKU only) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR Indicator 1* Status LED 1* VGA 1* UART Port Over Type C 1* UID button& LED 1* GbE MGMT Port |
| Cooling | Rear 10* 8086 FANs, Internal 4*8056 FANs N+1 Redundant |
| Operating Temp. | 5oC – 35oC |
| PSU | 8* 185mm 4+4 Redundant 2700, 12V Output PSUs Option：6* 185mm 5+1 Redundant 2000W, 12V Output PSUs |
| Dimension | 265mm (H) x 448mm (W) x 900mm (D) |
